Ext Storia V4 - Enduro Racing - Enquire for pricing and availability

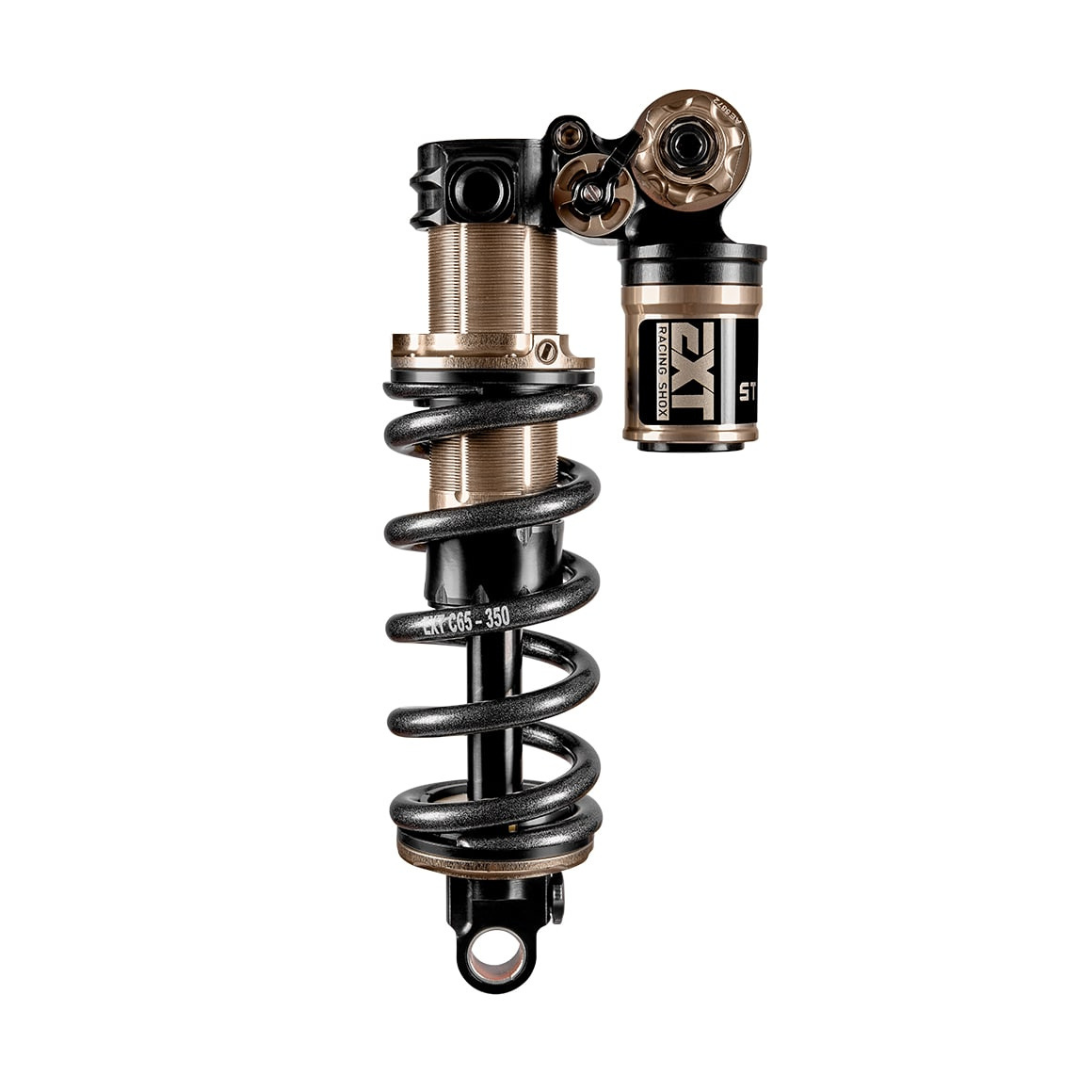

Ext Storia V4 – Enduro Racing

Description

• metric sizing – standard or trunnion mount

• 4 way adjustable (lsc-hsc-lsr-lok proprietary system)

• Unique patent pending PSR technology to avoid harsh top-out while improving bike platform stability

• Allen key adjuster for high & low speed compression adjusters

• high flow ø29 mm main piston

• ø24 mm valve piston

• Ø14 mm high strength chrome steel shaft with DLC ultra-low friction surface coating to increase durability

• new LOK technology – progressive opening – silent working

• Spring Thrust Bearings to improve straight alignment in case of spring side-load conditions

• engineered rebound circuit to separate bump and rebound oil flow

• ultra low-friction coating

• New externally adjustable HBC Technology: no more harsh bottom-outs

• Reservoir with large volume bladder design with very low reservoir pressure (55PSI) for maximum sensitivity

• full custom hydraulic setup available

• no cavitation

• Unique frequency dependent 1 way valve for best ride quality on rough terrain

• very low hysteresis for high dynamic response

• high turbulent flow for very low temperature depending

• low friction energize seal

• thinner bottom-out bumper

• new rebound knob for easy spring swap

• New high viscosity index EV2S fluid developed throughout our off-road motorsport experience

Weight: 636 gr.

(200×57 mm. Standard mount – 375 lbs. Spring)

Available lengths / stroke

Metric standard

• 210 / 50 mm

• 210 / 52.5 mm

• 210 / 55 mm

• 230 / 57.5mm

• 230 / 60 mm

• 230 / 62.5 mm

• 230 / 65 mm

• 250 / 67.5 mm

• 250 / 70 mm

• 250 / 72.5 mm

• 250 / 75 mm

Metric trunnion

• 185 / 50 mm

• 185 / 52.5 mm

• 185 / 55 mm

• 205 / 57.5 mm

• 205 / 60 mm

• 205 / 62.5 mm

• 205 / 65 mm

• 225 / 67.5 mm

• 225 / 70 mm

• 225 / 72.5 mm

• 225 / 75 mm
